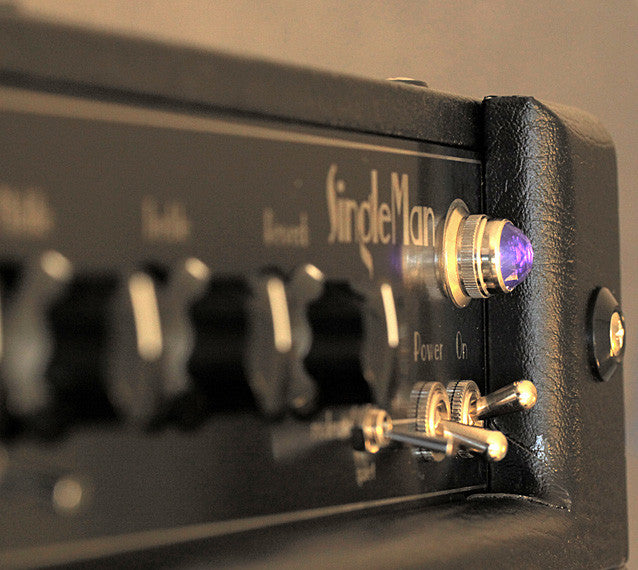

Singleman is the new Brunetti single channel tube combo unit with integral reverb unit. This low power amp has been developed as an easy to use, versatile and adaptable unit to suit a wide range of live or studio situations. There are two different final tube configurations: 6V6 or 6L6 depending on the sound level you prefer. Both are equipped with PowerLimit® technology.

The Singleman is equipped with the Accutronics spring reverb system and a true bypass effects loop which can be completely removed from the signal path.

The one-channel structure has allowed a straightforward amp focused on clean sound with an immediate tweaking and easy to shape to the taste of the musician, through effective controls and switches for specific functions. We recommend the reading of this manual as well to those who already know the product.

Specifications

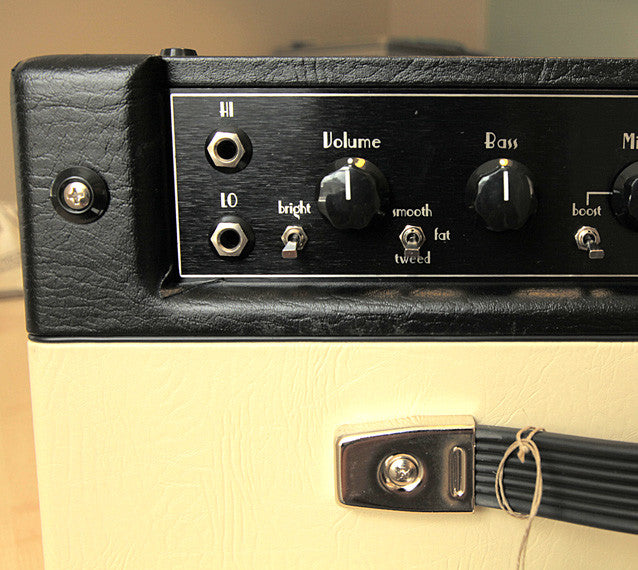

• Single Channel Pre-Amp: VOLUME, BASS, MIDDLE, TREBLE, REVERB controls
• BRIGHT manual switch
• SMOOTH, FAT TWEED manual switch
• BOOST manual switch to enhance medium frequencies
• Amplifier: class A 16W (6V6GT tubes) or class AB 35W (6L6WGC tubes)

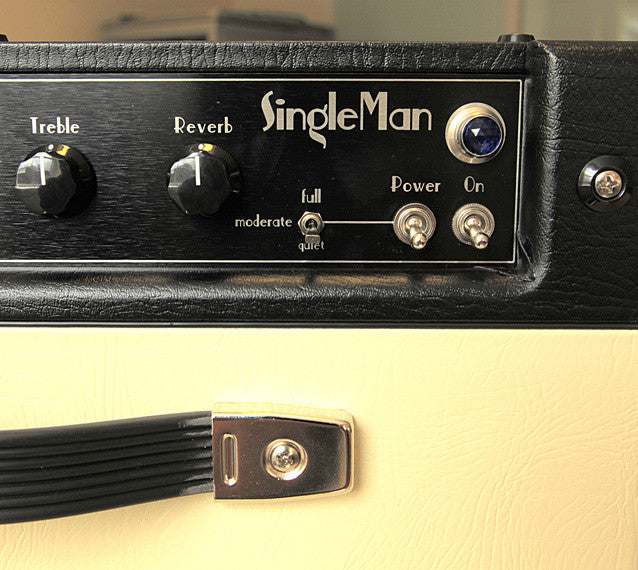

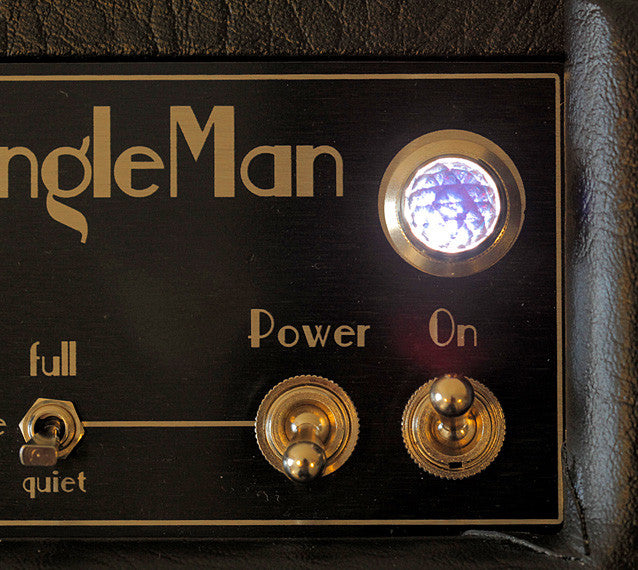

• Powerlimit®: FULL, MODERATE, QUIET manual control to switch the final stage power level between full, 1/4 and 1/16 levels
• Reverb: Accutronics spring operated by remote foot switch

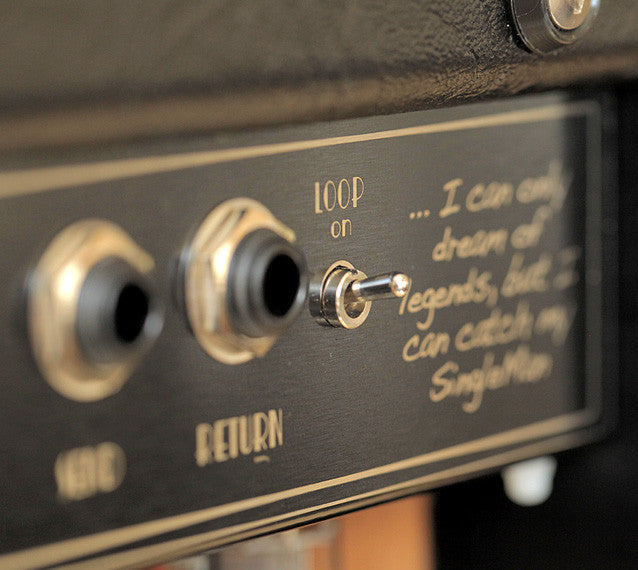

• Effects Loop: send/return for use with rack effects or stomp units. Can be excluded via a manual switch (true bypass)

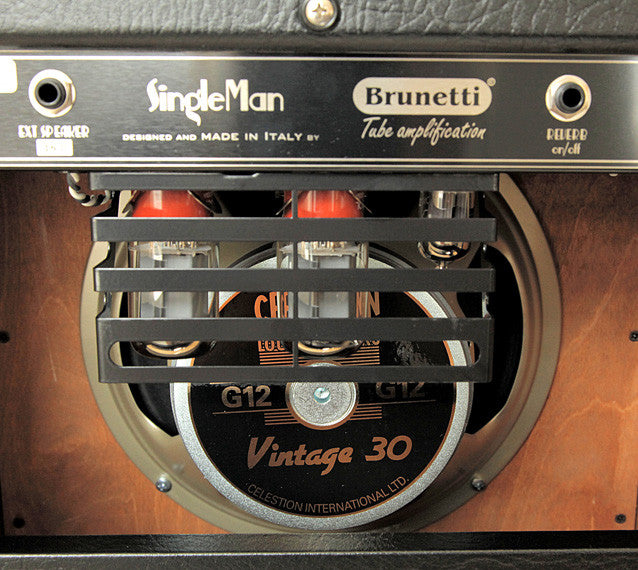

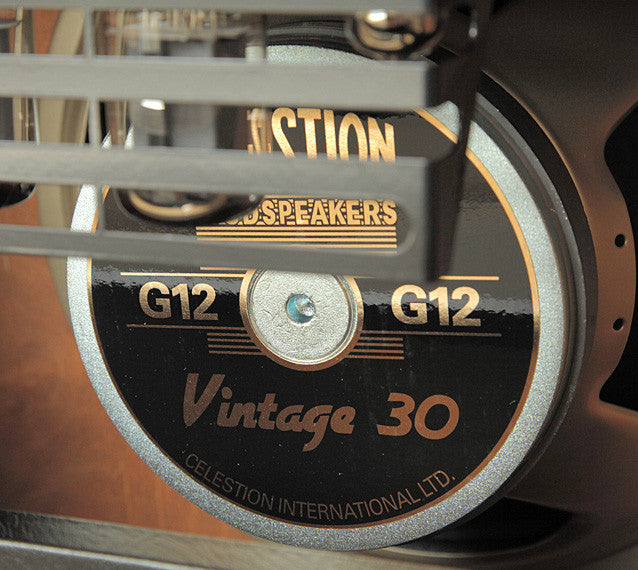

• Loudspeaker: 12” cone Celestion V30 (16Ω)

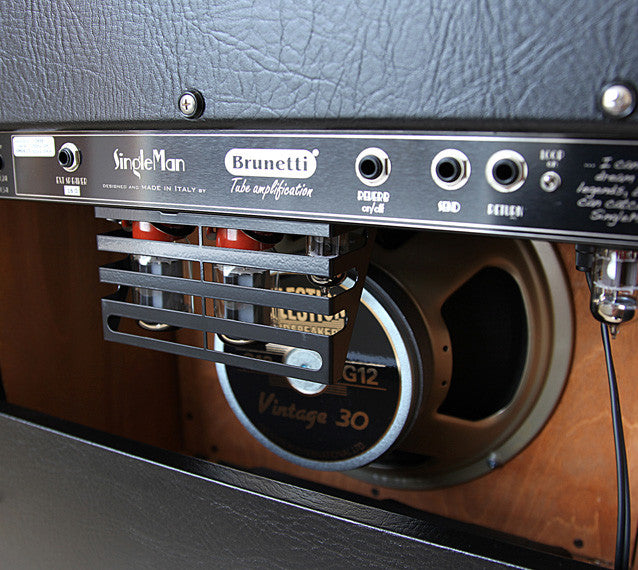

• External Speaker Output: rear jack, 16Ω for additional speaker connection
• Tubes: 2X 12AX7/ECC83 + 2X 6V6GT (autobias) or 2X 6L6WGC (trimmed bias)
• Structure: chassis and panels laser cut steel/stainless steel
• Electronics: “Red Series” MKP WIMA capacitors, sealed relays, low noise film resistors
• Overall Dimensions: L 465 mm, H 500 mm, D 270 mm
• Weight: 18 Kg
• Packaged Contents: Power cable, reverb footswitch, owner's manual, waterproof cover
